GR-B813-10-L Grove Gear Right Angle Worm Gear Speed Reducers, GR8130003.00

Our Price: $634.90

Ships in 1-2 Days

Qty

Description:

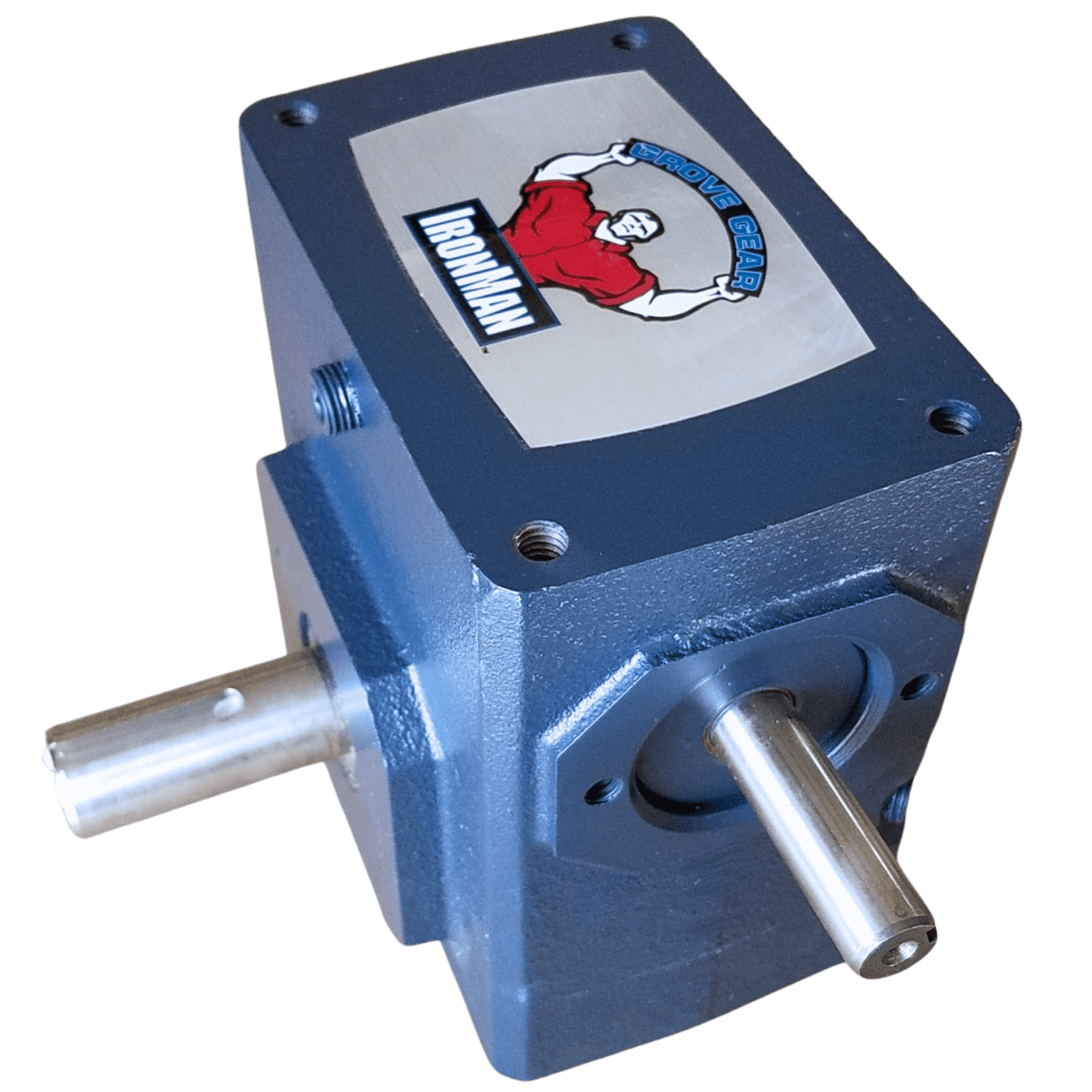

Grove Gear IronMan GR-B813-10-L (catalog GR8130003.00) 10:1 single reduction right angle worm gear speed reducer with 1.33″ center distance. Cast iron housing, non-flanged solid output left hand, 0.5″ input diameter, 0.625″ output diameter. Blue painted finish, Viton shaft seals, base mount. 0.823 HP input at 1750 RPM, 293 lb-in output torque, 700 lb overhung load capacity. For more information about this or other gear reducers, contact MDS using the “Have a question about this product?” link below.

Ratio

Reduction

Single

Output Shaft Diameter

0.62" – 5/8"

Input Shaft Diameter

0.5" – 1/2"

Center Distance

1.33" – 1-21/64"

Input

Solid Input Shaft

Output

Solid Output Shaft / Left Hand

Material

Cast Iron / Blue Paint Finish

MFP

GR8130003.00

Brand

Series

Weight:

17 lbs
